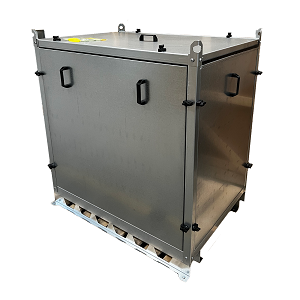

The type AB acoustic booths are used for noise reduction.
The acoustic booths are supplied with fitted fan or in kit form.
The acoustic booth is as standard supplied with rotatable flange fitted on in- and outlet. This provides easy connection to the remaining ducting.
Acoustic booths are supplied with same dimension of inlet and outlet flange as the fan.
JK-K and JK-D-fans are supplied with smooth inlet if they are mounted in an acoustic booth.
Acoustic booths are assembled by means of clamps that hold the big panels to the steel frame.
At service/inspection you can then quickly remove the sides and have easy access to the fan.
The panels are provided with handle for easy handling. The panels tighten with rubber strip against the frame.
Noise and vibrations are in this way reduced.
Acoustic booths are made from galvanized sheet (Z275).
The damping material is an environment friendly material, made from recycling material from polyethylene production, covered with foil and fire resistant material.
The acoustic booth is as standard supplied with cooling fan fitted in bottom, for optimum cooling.
