SuperBlower Filter

The SuperBlower filter is an under- and over-pressure filter designed to run in constant operation. Constructed as a self-supporting sheet metal construction in high tensile steel modules. Process air is passed into a filter chamber, where the larger particles settle to the bottom of the filter, from where the air is passed through filter bags which retain the residual particles.

The modular SuperBlower filter is a flexible design which can be adapted to any given task in terms of capacity by dimensioning the filter height and the number of filterbags.

Surface: Powder coated to corrosion class C3 cf. ISO 12944.

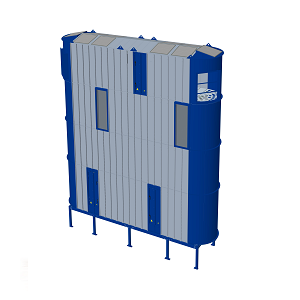

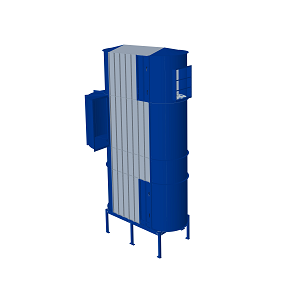

Inlet: The SuperBlower filter is available with 180º tangential inlet, standard 706 x 1806 mm or large 1006 x 2106 mm. Inlets can be fitted at both ends of the filter.

Cleaning system: The filter is delivered with PowerPulse®.

Discharge system: Scraper bottom with outlet for rotary valve, screw, bucket or container.

ATEX: SuperBlower filter with PowerPulse® cleaning and external compressed air is ATEX approved and fitted with JKF’s specially developed VFV® explosion relief venting (vertical explosion relief venting through the filter top).

Operating range: Pressure: +/- 5000 Pa
Filter area: 221-1295 m²
Max. operating temperature: 40ºC
Min. operating temperature: -10ºC

Connection: Gear motor cleaning carriage: 0.18 kW, 20.0 min-1, 3 x 230 V, 50 Hz, 0.9 A
Gear motor scraper bottom: 2 x 0.75 kW, 17.5 min-1, 3 x 400 V, 50 Hz, 2 x 2.2 A
Inductive sensor, scraper bottom: 24 VDC

PowerPulse® filter control system: 0.6 kW, 1 x 230 V, 50 Hz, 1.9 A
External compressed air - PowerPulse®: 5 bar, min. 350 Nl/min.
Air quality according to ISO 8573-1: 2010 [5:3:4]
External connection: ¼” internal thread.

Noise: Noise level during cleaning measured 5 m from the filter in ground level:
External compressed air PowerPulse®: 69.8 dBA
Internal compressor PowerPulse®: 74.6 dBA

Accessories: Ladder/gangway: Ladder/gangway designed according to ISO/EN/DIN 14122.3/4 and available in several configurations. See page 11.
Ladder with gangway, front-mounted
Ladder with gangway, side-mounted
Ladder with gangway, front-mounted
Ladder with double gangway, side-mounted
Monitoring apparatus for explosion membrane

Door contacts:: 2.3 (close-before-switch-contact) in accordance with EN50047, IP67 NC contact.

Type designations: Filters are type-designated using a combination of letters and numbers separated by hyphens and spaces. Designation SBF-202 5 - 0 - 1C (8) thus describes a SuperBlower filter with 202 filter bags, 5 m filter bags and 1 side inlets.
